7-8plexes in the RS zone and location near transit

A quick, but deeper look at 7-8 unit multiplexes in the RS zone and where they are located in relation to transit.
housing
edmonton
zoning
transit
Author

Jacob Dawang

Published

July 7, 2025

Here’s another look at rowhouses and their distance from transit. The 7-8plexes in Edmonton are built remarkably near transit, with over a majority within a 1km radius of a LRT station. I also include an interactive map for you to explore where the 7-8plexes are and how far they are from LRT stop.

Data

The data is all from the City of Edmonton Open Data and includes:

Plexes are being built near transit

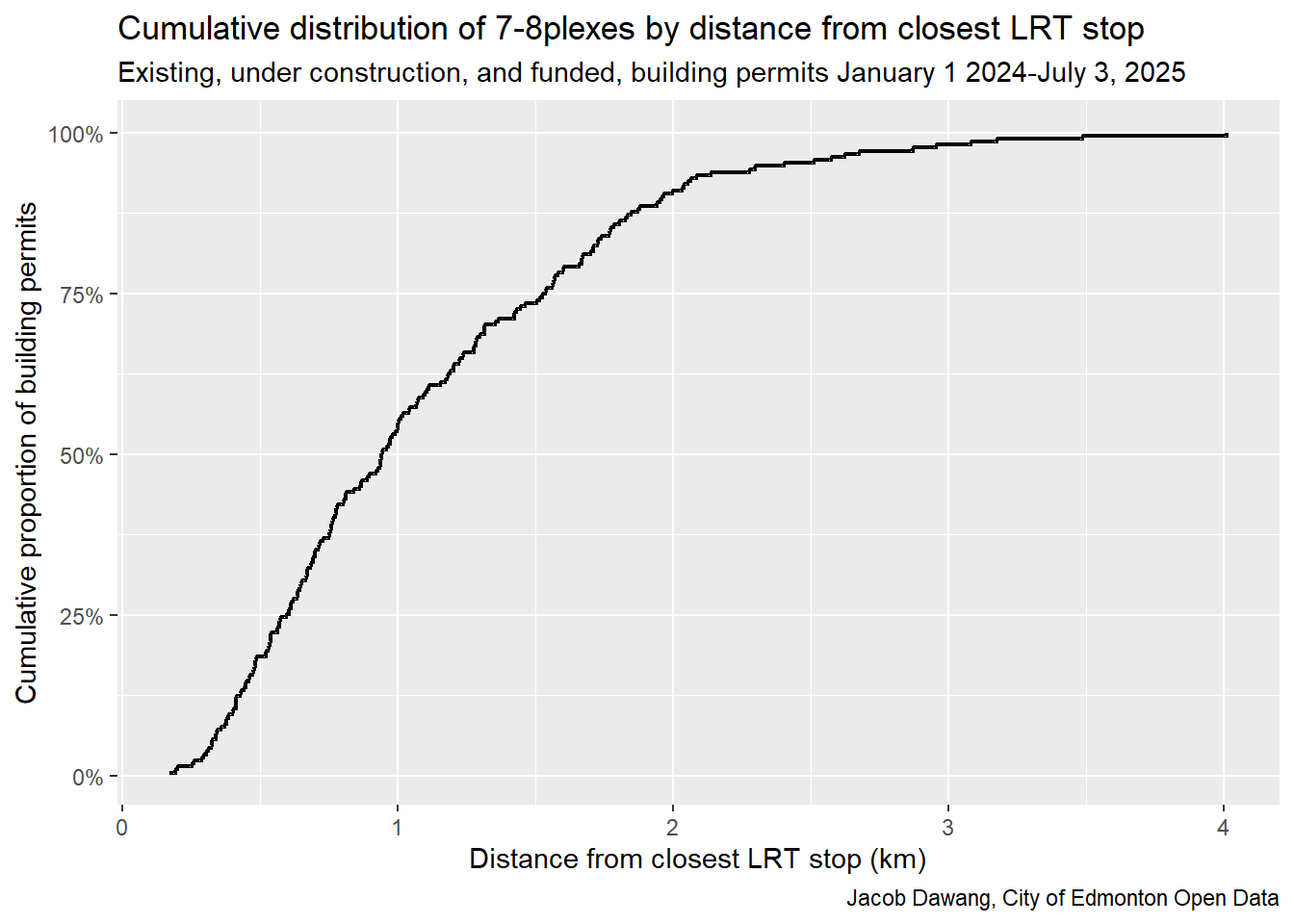

Since 2024, 7-8plexes in the RS zone are being built near transit. Figure 1 shows the cumulative distribution of 7-8plexes by distance from closest LRT stop, either existing, under construction, or funded. Summarizing the plot:

  • 55% of 7-8plexes in the RS zone are within 1km of a LRT stop.
  • 73% of 7-8plexes in the RS zone are within 1.5km of a LRT stop.
  • 91% of 7-8plexes in the RS zone are within 2km of a LRT stop.
Figure 1: Cumulative distribution of 7-8plexes by distance from closest LRT stop

Mapping 7-8plexes and LRT

Taking a look at the map in Figure 2, I just want to comment that almost all of the 7-8plexes that are causing such strife in West Edmonton are clustered around the Valley Line West extension. Basically all the 7-8plexes are being built a short walk, bike ride or bus ride away from a LRT station. So it makes sense that of course less parking is needed, because residents will be taking transit more.

Note

Each 7-8plex is represented by a blue dot. The red circles indicate LRT stops. The red lines indicate the radii from the LRT stops. Dotted for 1km, dashed for 1.5km and solid for 2km.

Figure 2: Map of all 7-8 unit building permits in RS Zone and LRT stops, January 1 2024-July 3, 2025

Interactive map of 7-8plexes and LRT

Here’s the interactive map. Same colours/linetypes as the static map.
